Carriage of banans -Safety procedure onboard general cargo ship

Bananas are usually packed in cartons ranging in weight from 11kg to 18kg, which are palletised and carried in temperature controlled holds or refrigerated containers. Palletisation has two main advantages over break-bulk carriage. Firstly, it is more cost effective for handling and secondly, it helps reduce the potential for fruit damage by handling.

Cartons are punched with ventilation holes and handles to facilitate handling. A standard 18kg carton usually contains 16 to 20 clusters of bananas, which may be packed loose in a single transparent polythene bag or individually in separate polythene bags to suit individual customer (supermarket) requirements.

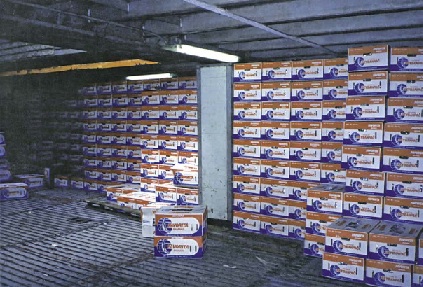

cartons of bananas in stow
Cartons of bananas in stow

The carriage of bananas requires greater ventilation fan power than is necessary for other refrigerated commodities, e.g. apples, frozen meat. Consequently, while a ship designed for the carriage of bananas is quite suitable for carrying citrus fruits, apples, etc., a vessel designed and equipped solely for the carriage of the latter would not necessarily be able to carry bananas satisfactorily over a long voyage. Up to 90 air changes per hour may be necessary to maintain a stable carriage temperature (typically 13.3°C to 14.4°C) and the removal of respiration gases, such as CO2.

The respiration rate of bananas increases dramatically after cutting, which produces ethylene followed several hours later by CO2. It is essential that the gases are removed and the temperature maintained within the desired range, otherwise the ripening process will continue inexorably. Bananas are both producers of and sensitive to ethylene.

Additional measures can be used to limit respiration and consequent production of ethylene. Firstly, by modifying the atmosphere of the polyethylene bag (commonly referred to as "Banavac") and/or secondly, by modifying and controlling the atmosphere (C.A.) of the vessel's holds. Banavac involves using a non- permeable polythene bag and drawing out all the gases to create a vacuum. This has the effect of limiting the respiration of the bananas.

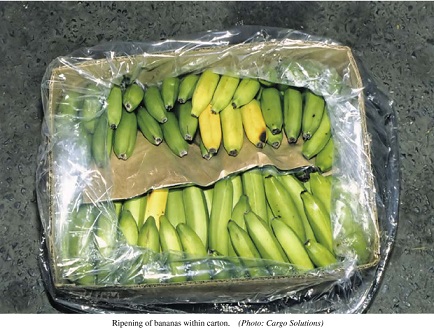

Ripening of bananas within cartons
Ripening of bananas within cartons

C.A. of a vessel's hold is achieved by removing the gases and maintaining a low level of oxygen at 2.5% to a level of carbon dioxide at 5%, which limits the respiration rate of the bananas. This is carried out by the use of a nitrogen generator and sophisticated monitoring equipment to ensure accurate levels of O2 and CO2 are maintained. C.A. carriage has the further advantages of greatly reducing the incidence of "ripe & turning" fruit and crown rot during the sea passage.

Pre-Shipment Preparation

Prior to loading, compartments should be thoroughly cleaned, well aired, ozonated and, if necessary, fumigated in order to remove any trace of residual odours, particularly from citrus fruits. Because of the large amount of condensation produced from the cooling batteries during carriage (especially the first 24­48 hours after closing hatches), special attention must be paid to seeing that all scuppers are clear. Compartments should be pre-cooled to the specified temperature.

Prior to shipment, sample cartons should be opened to ascertain the condition of the fruit. Good pre- shipment condition is vital to successful transport, i.e. fruit should be all green (it is not acceptable to just remove single ripened fingers from a bunch. The whole bunch should be rejected, even if one banana has turned yellow). Care also should be taken to ensure that the fruit is not suffering from stem rot.

Bananas cut more than 18­24 hours before shipment should not be accepted unless they have been kept under refrigeration. To determine the suitability for transport, sample fingers should be cut in half with a sharp knife. On separating the two faces gently, filaments of a latex-like substance should link the cut surfaces until some distance apart. If this does not happen, the bananas are ripening and should be rejected. A further test may be to shave the toe of the banana where the flesh should be dry and have a slightly grainy feel. The presence of moisture may indicate the ripening process has commenced. Careful handling is necessary to prevent bruising when picking, grading and packing.

Pulp temperatures should be recorded at the beginning, middle and end of loading of each compartment.

Stowage of bananas

Shippers' instructions for the stowage and care of the cargo are almost always issued to the vessel prior to the commencement of loading and usually form part of the producer's Quality Management System. The instructions should be followed closely and an accurate record kept of any enforced deviation from the letter of the instructions.

When stowing over fixed gratings, which is the normal method of ventilation on modern refrigerated ships, precautions should be taken to avoid short circuiting of the air flow. This is achieved by blocking off ventilation holes in the gratings which are not overstowed with cargo using dunnage, plywood, cardboard or well- secured plastic sheeting.

The stow should not extend up into spaces between underdeck beams or girders. Similarly, cargo should not obstruct the flow of air through the return air gratings to the fan room. A minimum clear space of 150mm should be maintained at the top of the stow.

Palletised Cargo

The minimum under-deck height for the handling and stowage of standard pallets is 2.2 metres. Pallets are stowed close together to avoid short-circuiting of the air flow. Gaps between pallets, or between the stow and the hold battens, should be filled using dunnage or custom-made air bags.

Cargo in Cartons

Cartons should be stowed eight to ten cartons high, depending upon the deck height and proximity to the fan room gratings normally with the long side fore and aft. Tiers should not be allowed to overlap. Vertical dunnage should be provided at regular intervals to guard against collapse of the stow in adverse weather conditions.

Break Bulk

"Break bulk" describes both loose stowed and palletised cartons. All deck space must be covered and with palletised cargo air bags are used to both secure the stow and fill any gaps thus preventing short- circulating of air. Should there be insufficient cargo to cover the whole deck area, tarpaulins or heavy-duty plastic sheeting should be spread over the empty deck to prevent short-circuiting. The covers should be securely fixed to the deck or weighted down with empty pallets.

Modern reefer vessels have a minimum deck height (measured from the top of the grating to the deckhead) of 2200mm. There must be a minimum of 100mm between to the top of the uppermost carton and the deckhead to ensure adequate air flow.

Normally air delivery for conventional carriage should be within the range of 13.0°C to 13.8°C. However, individual banana varieties or trades may require different conditions. In some instances shippers may require a two stage temperature reduction with a lower air delivery (not below 13.0°C) for the first 24 hours, which is then raised to a higher delivery temperature for the remainder of the voyage. Fresh air ventilation should be restricted for the first 24 hours to expedite cooling and then maintained at a rate to keep the CO2 level below the specified maximum (normally 0.5%).

During the voyage the temperature should not be allowed to drop below the specified minimum temperature (normally 13.3°C) otherwise bananas may be subject to UPD (Under Peel Discolouration) or chill damage.

A vessel discharging bananas in a cold environment (e.g during winter in a north European port) may increase the air delivery temperature 24 hours prior to the arrival in such a port and maintain the higher air delivery temperature to spaces being worked. It is important, however, that during breaks in cargo operations (meals, etc) the hatch covers are closed to reduce the effects of cold weather.

Accurate detailed records are to be maintained whilst the cargo is on board the ship covering the air delivery temperature, pulp temperature and the air return temperature.

Whilst cargo loading/discharging is underway the condition of the pallets and cartons and pulp temperatures should be checked and noted. During loading any ripe and turning (R&T) fruit should be rejected.

ISO Containers

Bananas may occasionally be shipped in closed box containers without refrigeration for very short passages. Container doors should remain open and the fruit should be green at the time of stuffing. Up to 25% wastage must be expected over a two or three day passage.

Very large quantities of bananas are now being shipped in insulated containers under refrigeration, usually under C.A. conditions. The payload of a 20ft unit stuffed with cartons is about 7.5 tonnes. Stuffing containers with fruit at field heat may be possible for limited transport distances, but is not recommended because:
Controlled Atmosphere (C.A.)

Bananas are now most likely to be carried under controlled atmosphere conditions.
