Globe valves -Ship service systems

Valves are designed to control or interrupt flow. This is done in valves by lowering, raising or rotating a disc in relation to a seating surface or by controlling the movement of a ball.

The globe valve

(Figure 1) has a bulbous body, housing a valve seat and screw down plug or disc arranged at right angles to the axis of the pipe. For the valve shown, both seat and disc faces are stellited and almost indestructible. Alternatively, the seat may be renewable and screwed into the valve chest or given a light interference fit and secured by grub screw. The seatings may be flat or more commonly mitred.

The spindle or stem may have a vee or square thread, below or above the stuffing box. If the latter it will work in a removable or an integral bridge (bonnet). The spindle may be held in the valve disc (or lid') by a nut as shown or the button may locate in a simple horseshoe. Leakage along the valve spindle is prevented by a stuffing box, packed with a suitable material and a gland. If there is a change of direction, as in a bilge suction, the valve is referred to as an angle valve. Flow is from below the valve seat, so that the gland is not subject to higher static pressure when the valve is closed. The disc must be guided by wings or a stem on the underside for location, or by a piston as shown.

The type of valve with the disc attached to the spindle is of the screw lift type. When the disc is not attached to the spindle (inset Figure 1) it is a screw-down non-return (SDNR) valve, as used for bilge systems, to prevent back flooding. They are also used as feed check and boiler stop valves. The disc requires guide vanes or a stem to keep it concentric with the seat when open. The greatest lift required is one-quarter of the bore; guides must be of a greater length than the lift.

glove valve

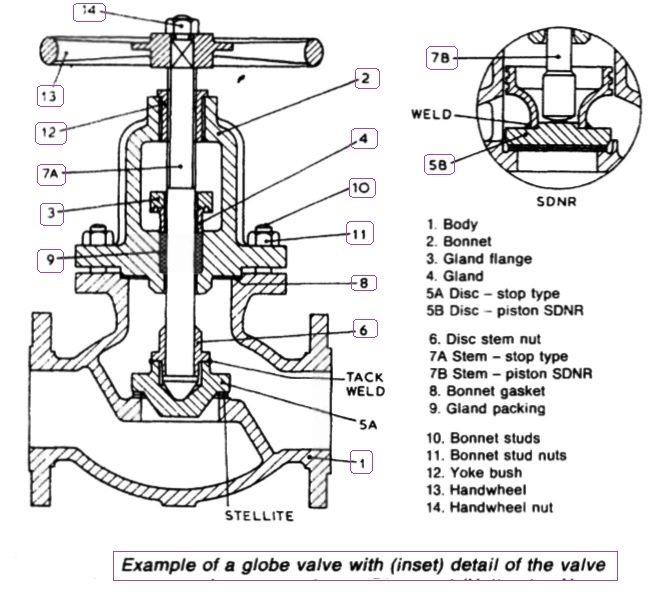

Figure 1: Example of a globe valve with (inset) detail of the valve arranged as a screw-down non-return (SDNR) unit (Hattersley Newman Mender Ltd.)
1. Body 6. Disc stem nut 10. Bonnet studs 2, Bonnet 7A Stem - stop type 11. Bonnet stud nuts 3. Gland flange 7B Stem - piston SDNR 12. Yoke bush 4, Gland 8


A free-lifting non-return valve (Figure 2) is fitted in the compartment served by a bilge suction line, when the pipe is nearer to the ship side than one fifth of the ship's breadth. Such valves are intended to prevent flooding of the compartment in the event of collision damage.

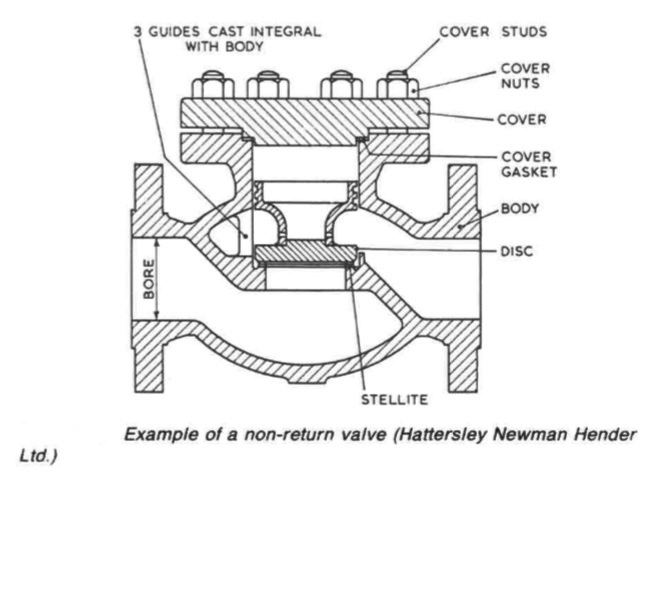

Example of a non-return valve (Hattersley Newman Hender Ltd.)
=
Figure 2:Example of a non-return valve (Hattersley Newman Hender Ltd.)


Valve actuators

A variety of valve actuators to control the opening and closing of globe, gate and butterfly valves are available. In some types an electric motor, fitted with limit switches is used to turn a threaded stem through a yoke, purely substituting the action of a handwheel.

Most remotely operated valves have pneumatic or hydraulic actuators. These give linear motion to a piston which for a globe or gate valve moves the valve stem axially up or down. The globe valve disc may be given a slight turn on landing to clean the seat. The piston actuator for a butterfly valve rotates the valve disc through 90° directly or through a scroll arrangement (Figure 3 )

Pneumatic butterfly valve actuator showing scroll cam arrangement=
Figure 3:Pneumatic butterfly valve actuator showing scroll cam arrangement
