Marine auxiliary engine hydraulic governor

Governor or speed governor – During normal operation, the engine speed is controlled by a governor which regulates the injected fuel quantity corresponding to the load. The governor shall prevent the engine from exceeding the rated speed by more than 15%.

When used for alternating current power generation, a diesel engine is normally fitted with a hydraulic governor. This incorporates a centrifugal speed sensing device (spring loaded flyweights) controlling a suitably damped oil operated servo-cylinder through a pilot valve. The governor has adjustable speed drop and load limit controls. A split field, electric motor-operated speeder gear to facilitate remote alteration of engine speed setting from the switchboard is incorporated. This alters the spring pressure usually through a screwed rod.

woodward-governor

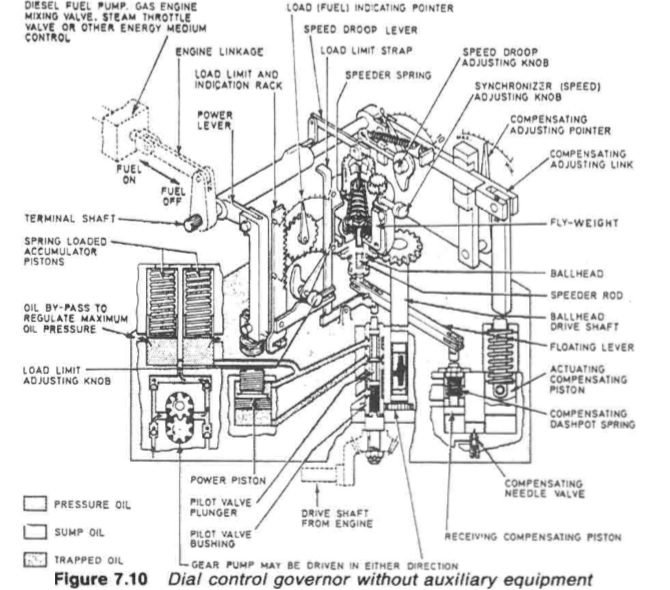

Figure 7.10 Dial control governor without auxiliary equipment

The Woodward hydraulic governor (Figure 7.10) is briefly described as an example of a commonly fitted type. This has a gear pump driven from the engine camshaft to supply the hydraulic oil first to accumulator pistons, under which is a bypass, to regulate maximum pressure. One branch supplies oil which acts on top of the power piston. The pressure from this supply tends to turn the terminal shaft to shut off fuel. The other branch supplies oil to the pilot valve which is operated by the linkage from the flyweights above.

woodward-governor

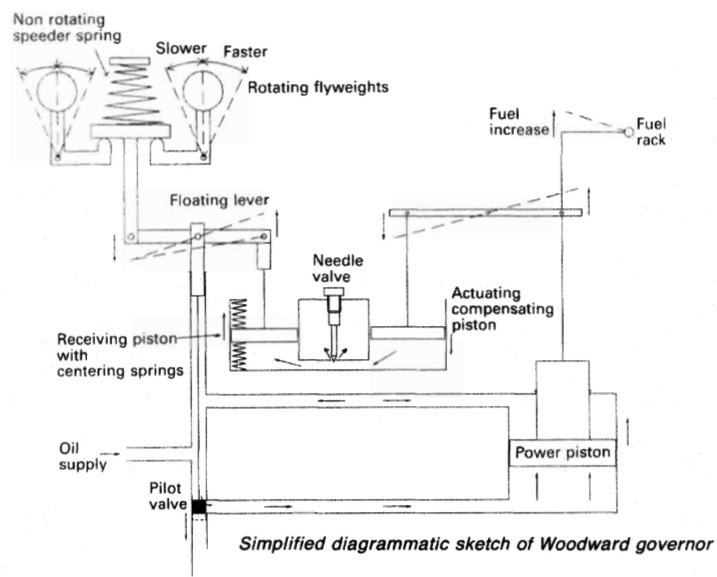

Figure 7,11 Simplified diagrammatic sketch of Woodward governor

Should the speed of the engine decrease due to increased load the flyweights (Figure 7.11) will move towards their centre of rotation and lower the position of the pilot valve plunger, so that oil is admitted via the pilot to the underside of the power piston. The pressure is now equal on the top and bottom of the power piston. Because the area on the bottom is much greater than the top the net resultant force causes the piston to move upwards, so increasing fuel to the engine as the power lever turns the terminal shaft and fuel rack to give later fuel cut-off. As the power piston moves up, the actuating compensating piston moves down. Oil under this piston is now forced through to the receiving compensating piston, raising the outer end of the floating lever and closing the pilot valve. This stops excessive movement of the power piston and fuel rack.



As the engine speeds up and the flyweights move out towards their former position, the oil holding the receiving compensating piston leaks through the needle valve. The two movements act on the floating lever without moving the closed pilot valve.

A decrease in the load causes the engine speed to rise so that the flyweights of the speed sensing assembly move outwards, raising the pilot valve through the floating lever. This allows oil to escape from beneath the power piston, so that the engine fuel setting is reduced. As the power piston moves down, the actuating compensating piston moves up causing the receiving compensating piston to move down, taking with it the outer end of the floating lever and closing the pilot valve. This action again stops excessive movement of the power piston and fuel rack. As the engine speed drops, the flyweights move back in towards their former position, while oil leaks through the needle valve allowing the receiving compensating piston to return towards its old position. Again, the two movements act on the floating lever without moving the closed pilot valve. UMS ope
